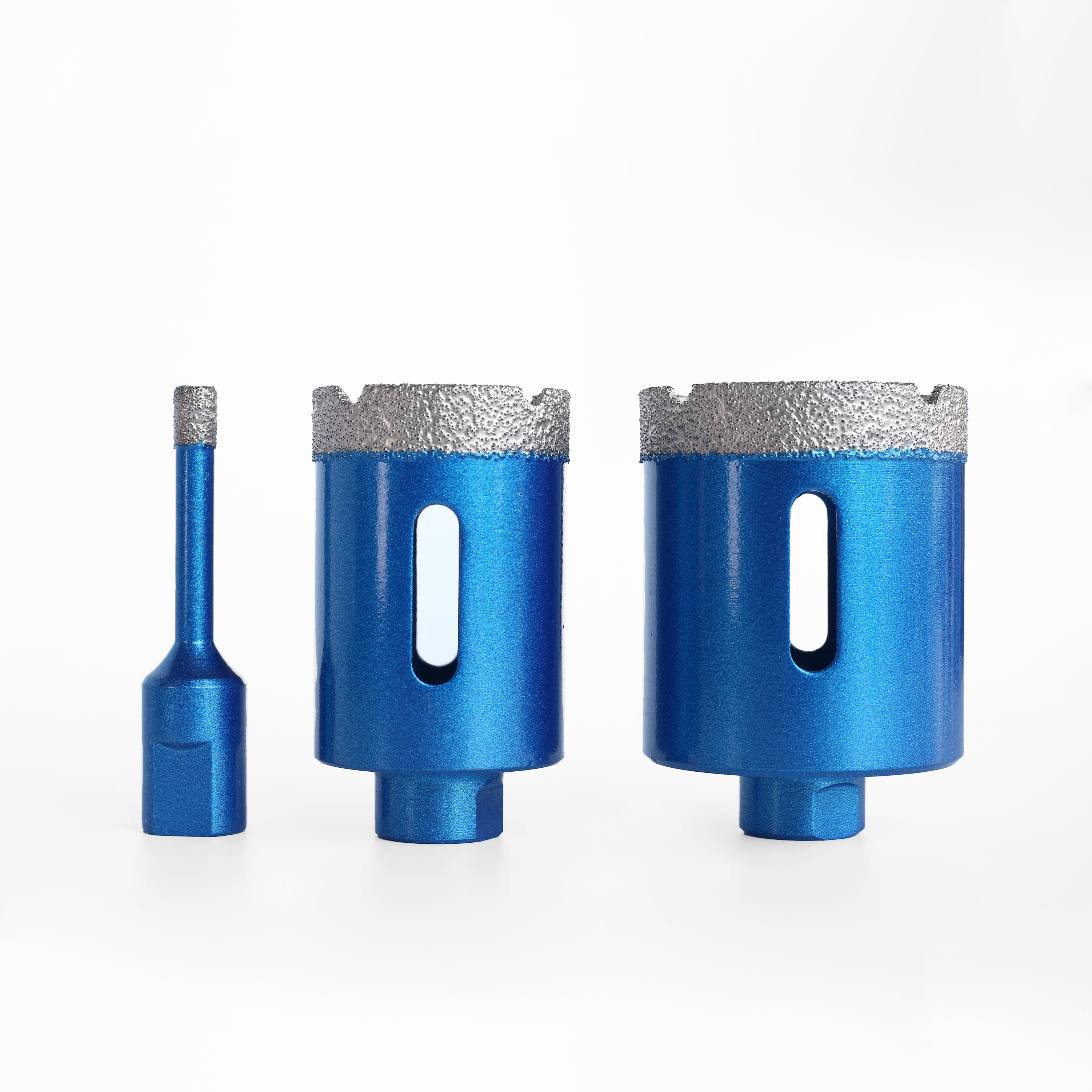

主图
主图

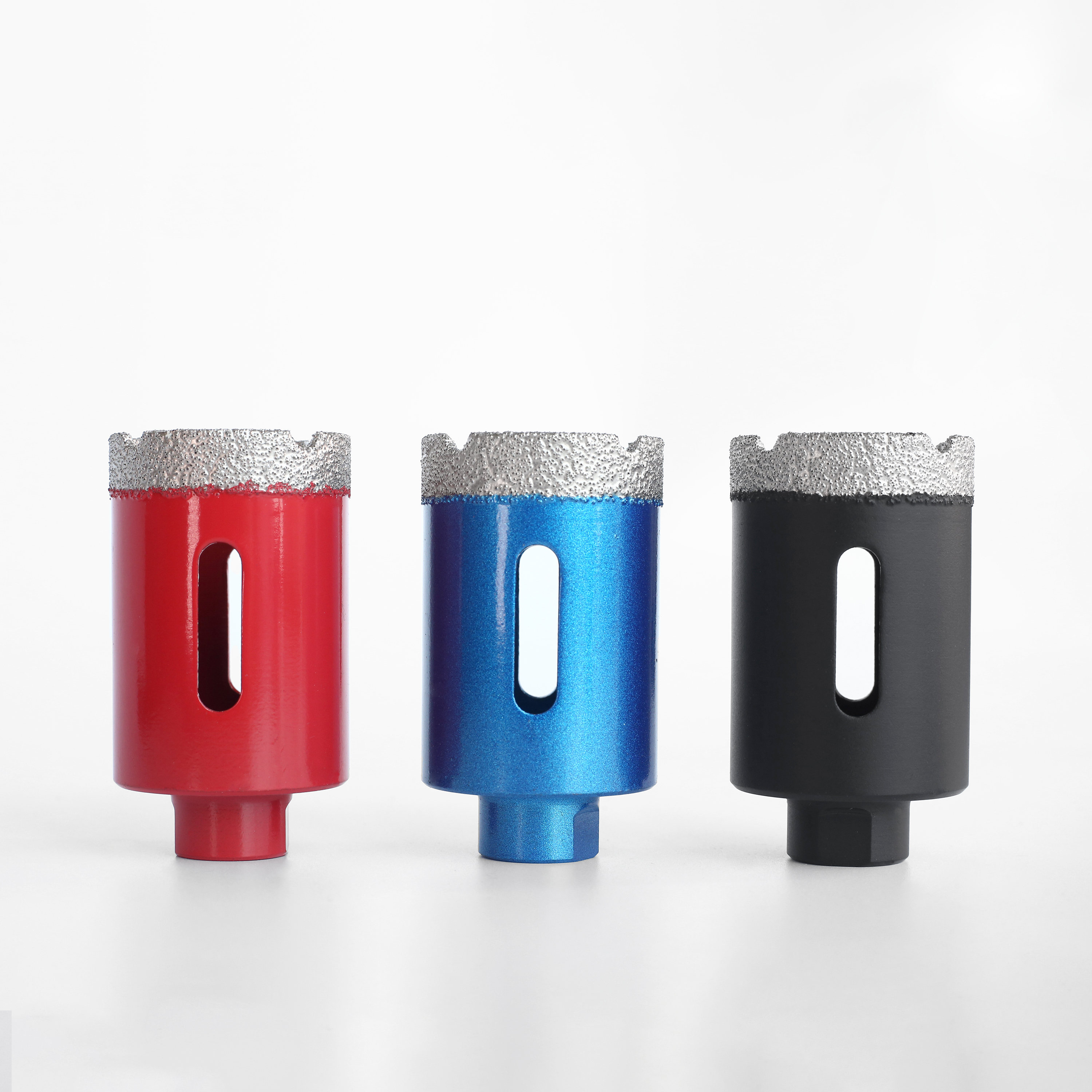

多种颜色选择

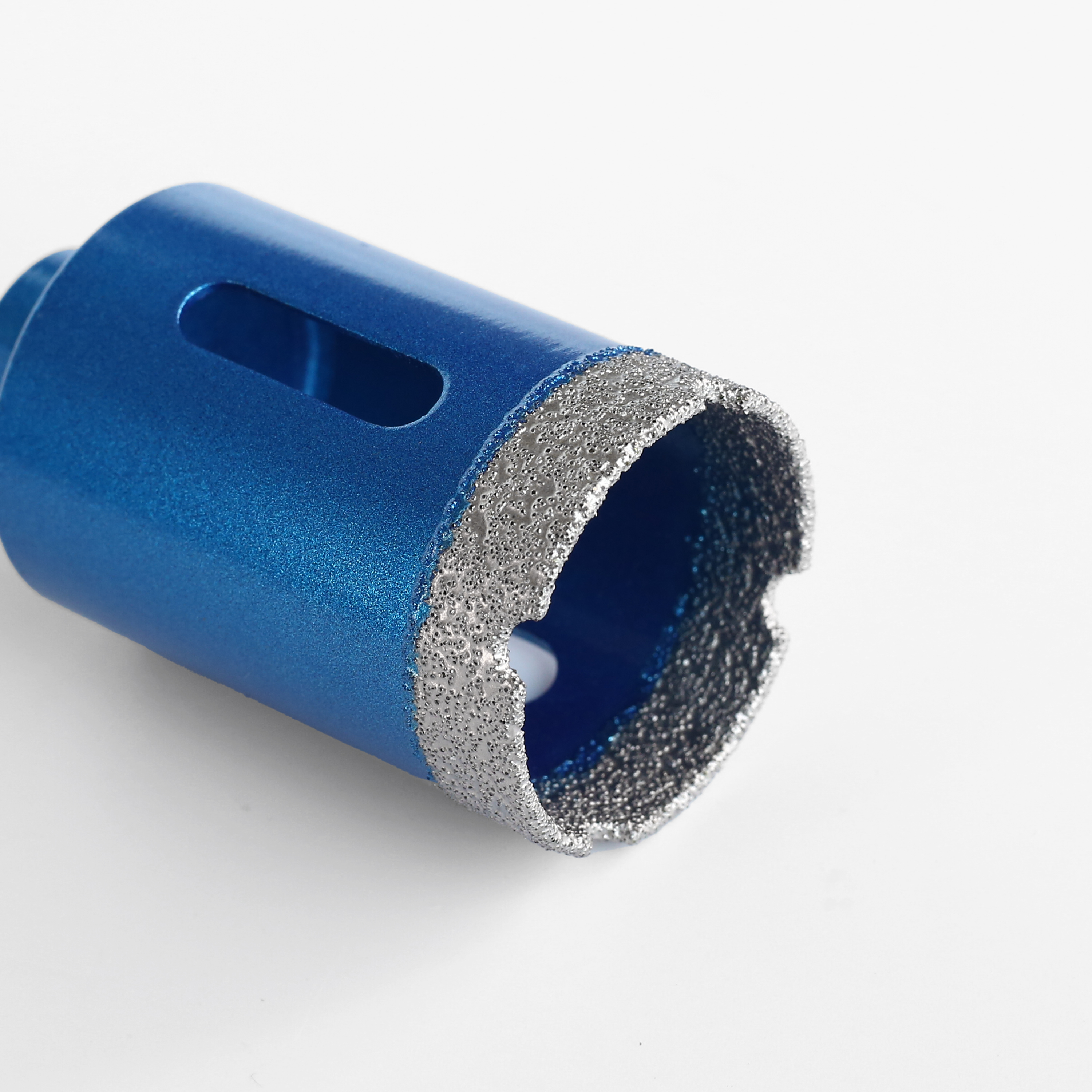

头部

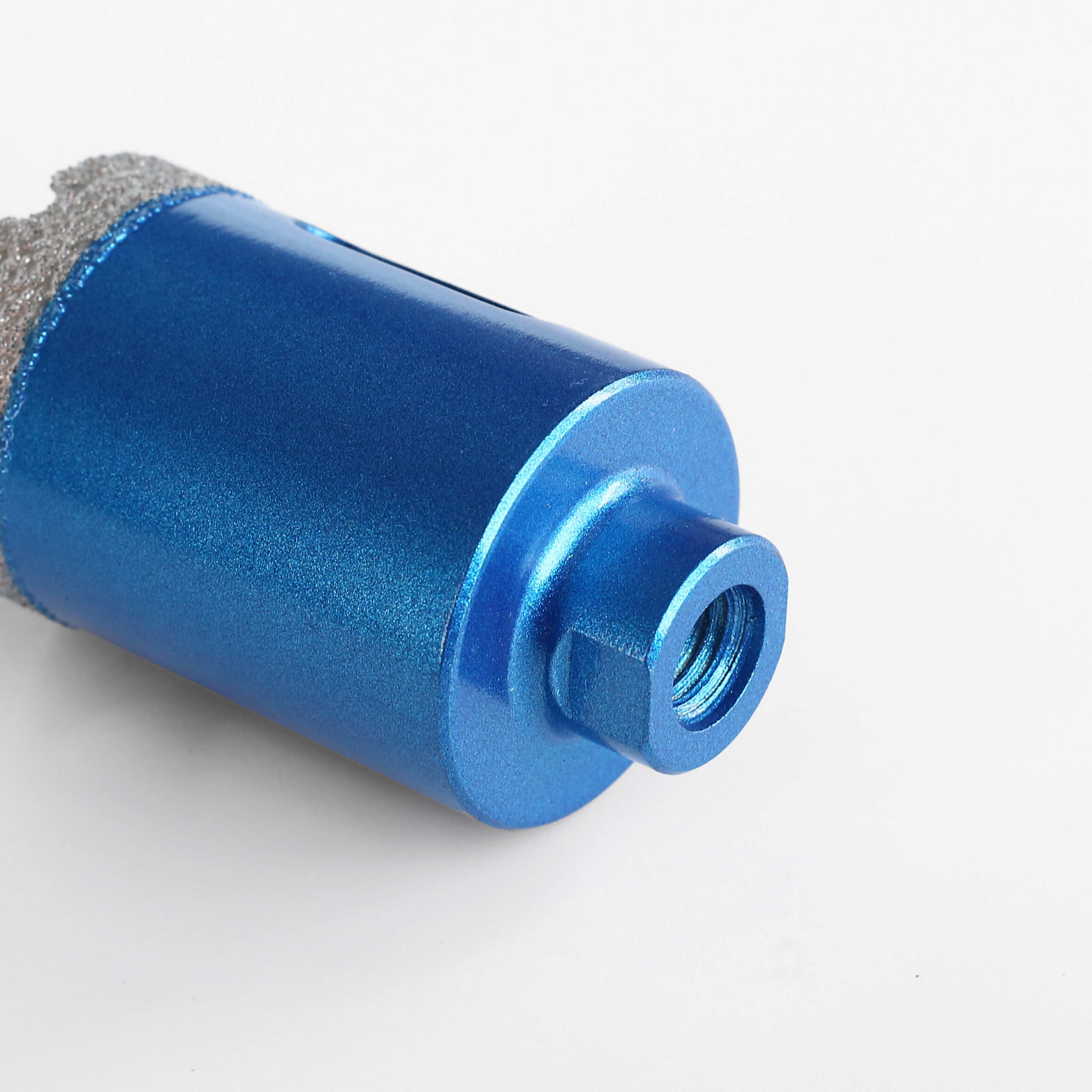

柄部
钎焊开孔器45-50目金刚石
M10钎焊开孔器
型号：BF-M10-HB
产品参数
产品规格Φ6-100mm
产品总长60mm±0.5mm
开孔深度50mm
基体材质45#钢
金刚石颗粒45-50目
适用机型100型角磨机 转速11000转
适用范围
全瓷砖、大理石、花岗岩、陶瓷等开孔作业
Specifications
规格参数表
| 开孔直径 | 开孔深度 | 总长 |
|---|---|---|
| 6mm | 50mm | 60mm |
| 8mm | 50mm | 60mm |
| 10mm | 50mm | 60mm |
| 12mm | 50mm | 60mm |
| 14mm | 50mm | 60mm |
| 16mm | 50mm | 60mm |
| 18mm | 50mm | 60mm |
| 20mm | 50mm | 60mm |
| 22mm | 50mm | 60mm |
| 25mm | 50mm | 60mm |
| 28mm | 50mm | 60mm |
| 30mm | 50mm | 60mm |
| 35mm | 50mm | 60mm |
| 38mm | 50mm | 60mm |
| 40mm | 50mm | 60mm |
| 42mm | 50mm | 60mm |
| 45mm | 50mm | 60mm |
| 50mm | 50mm | 60mm |
| 55mm | 50mm | 60mm |
| 60mm | 50mm | 60mm |
| 65mm | 50mm | 60mm |
* 尺寸均为人工测量，可能会有1-3mm误差，请以实物为准
